Infiltration gutters

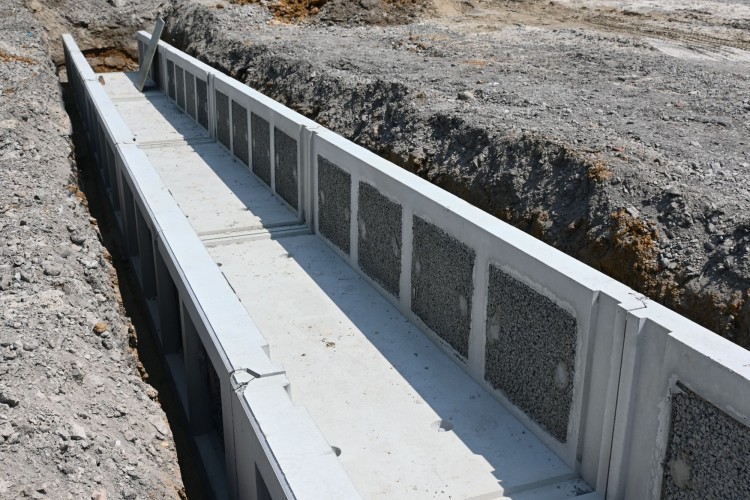

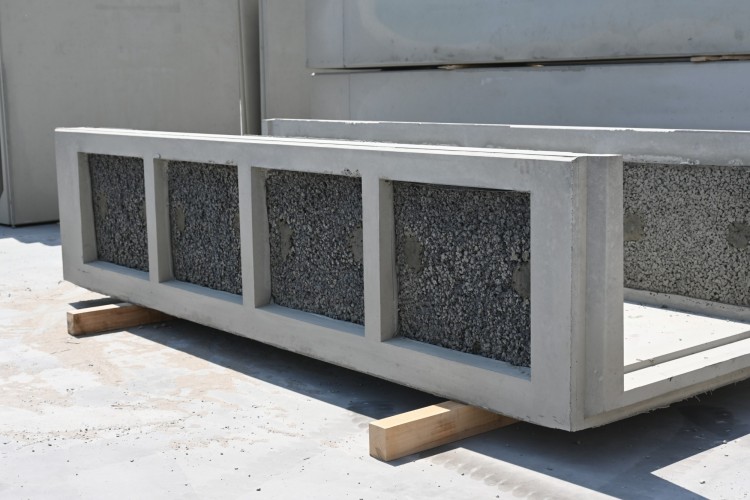

This U-gutter is suitable for buffering and infiltrating rainwater. Due to present cables, pipes and high groundwater levels, there is sometimes a need for shallow infiltration solutions. Thanks to the friendly and shallow installation method, any paving can be made more climate-proof with this infiltration channel. The shallow built-in depth has the added advantage of reducing construction costs. This gutter is also suitable for line drainage.

– Easy to install
– High concrete quality
– Buffering and infiltration of surface water
– Concrete cover plates full or slotted
– Line drainage possible

Infiltration gutters

ARTICLE L(cm) W(cm) Wn(cm) H(cm) Hn(cm) WEIGHT (kg) LIFTING SYSTEM CONNECTION
10320/70-D 300 120 96 70 60 1530 4×2,5T (DEHA) Tongue-Groove

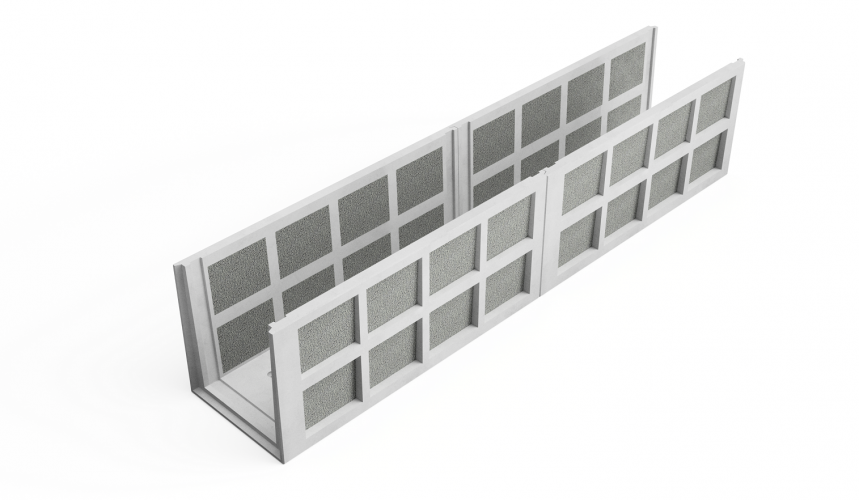

10320/130-D 300 120 100 130 120 2150 4×2,5T (DEHA) Tongue-Groove
  • buffer capacity per running metre:
    • 10320/70-D: 0.550 m³
    • 10320/130-D: 1,104 m³
  • infiltration area per running metre:
    • 10320/70-D: 0,721 m²
    • 10320/130-D: 1,441 m²

COVERPLATES

ARTICLE L (cm) W (cm) H (cm) WEIGHT (kg) AXLE LOAD FINISH
11320 100 90 14 400 15 T*** full
11321 100 90 14 325 15 T*** with slots

U-shaped gutter end piece

ARTICLE H (cm) T (cm) W (cm) WEIGHT (kg)
10390-E 61,5 10 78 150
10320/70-E 62 10 100 145
10320/130-E 122 10 104 300
